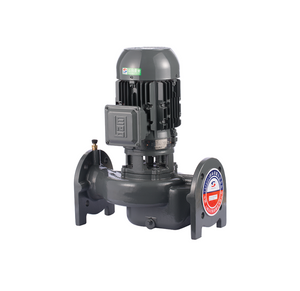

SCL Single-stage Centrifugal Pump

SCL、SCR、SCH、SCY single-stage single-suction vertical centrifugal inline pumps are high-effective energy-saving products, which are successfully designed by ways of adopting the property of worldwide centrifugal pumps and the unique advantages of vertical pumps, It is strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93. This Hydraulic pump develops into hot water pump(SCR), chemical engineering pump(SCH) and oil pump(SCY) according to different medium.
Availability:
Quantity:
Inquire Add to Basket

New Inline circulation pump

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Easily back pull-out from driver

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The Inline circulation pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1
